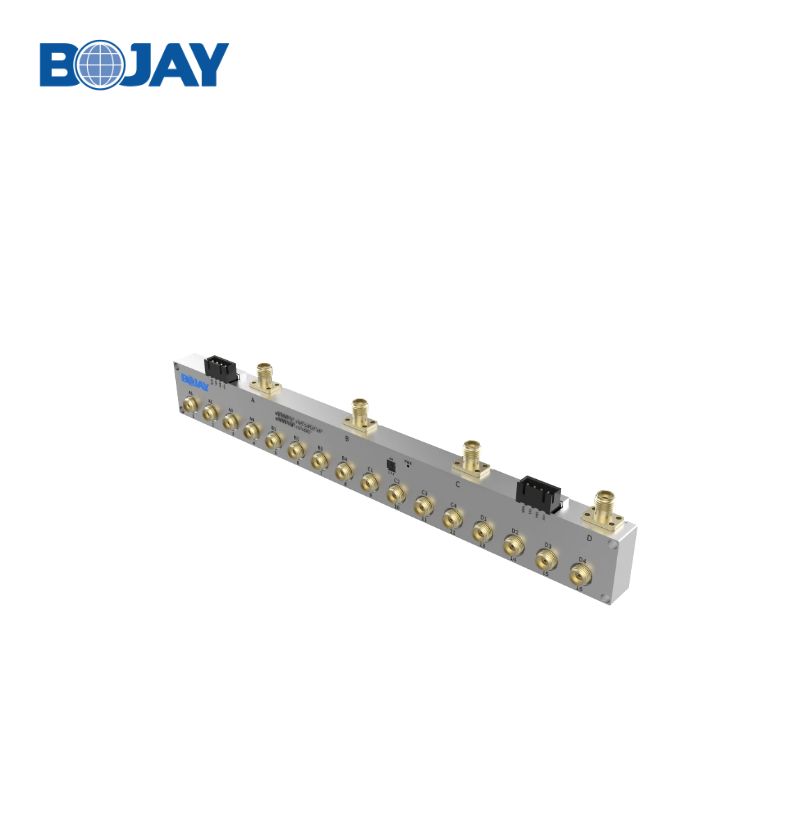

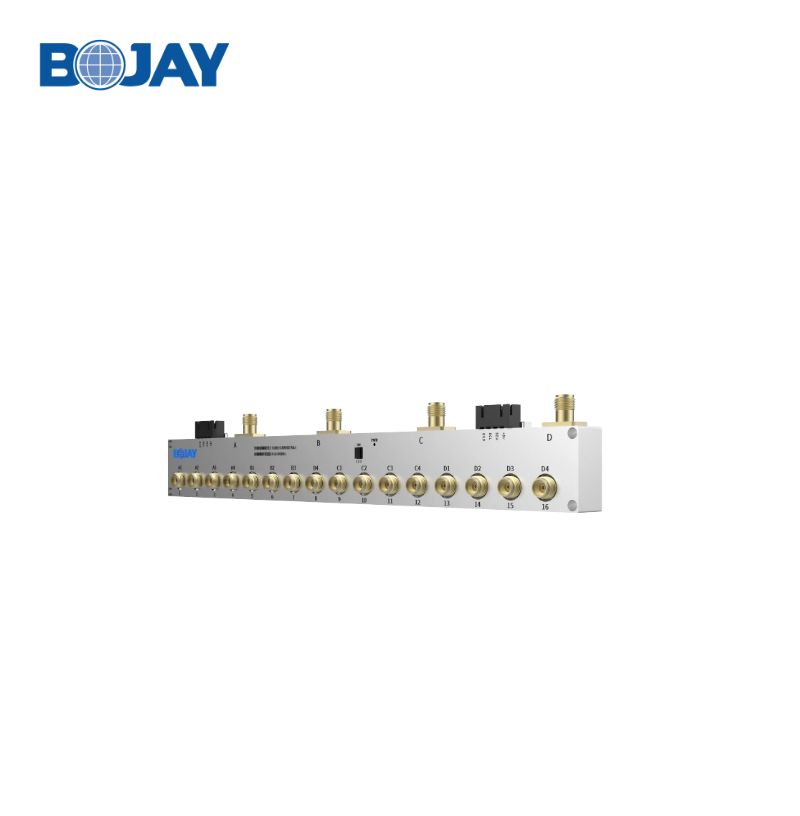

BJRS-S4P16T-AA Solid state switch

● Support sub 6G / WiFi 7 mobile communication test

● The RF connector adopts SMA to improve the reliability of the module ;

● The RF connector adopts SMA to improve the reliability of the module ;

  • Product Information
  • Download
Main Features

● Support sub 6G / WiFi 7 mobile communication test;

● The RF connector adopts SMA to improve the reliability of the module;

● Expand the port of the comprehensive tester to improve the utilization rate of the instrument.


Specification

Items

BJRS-S4P16T-AA

Operating frequency range

0.6~8GHz

switch type

Absorption, solid

Channel insertion loss

≤2dB@0.6~8GHz

VSWR1 is the common end and 2 is the antenna end

VSWR <1.2

Amplitude consistency of each channel

≤0.5dB

Maximum input power

≤2W (33dBm)

Switching Time

≤1ms

communication interface

I2C

 power supply

3V3

RF connector

SMA

Module isolation

>60dB

working temperature

-10~60

Others

Support Hot plugging and power protection

Dimension

208mm*33.5mm*14.4mm
