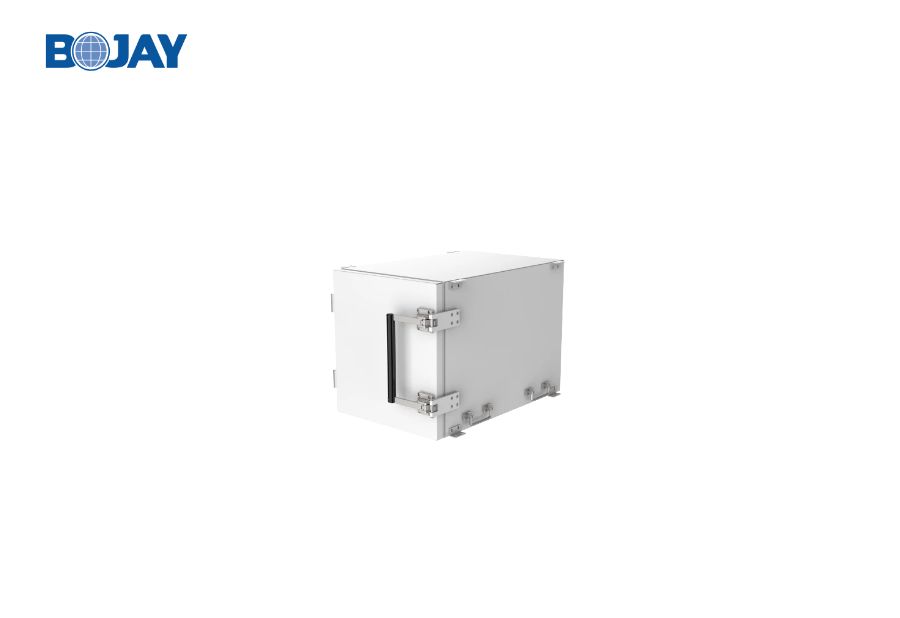

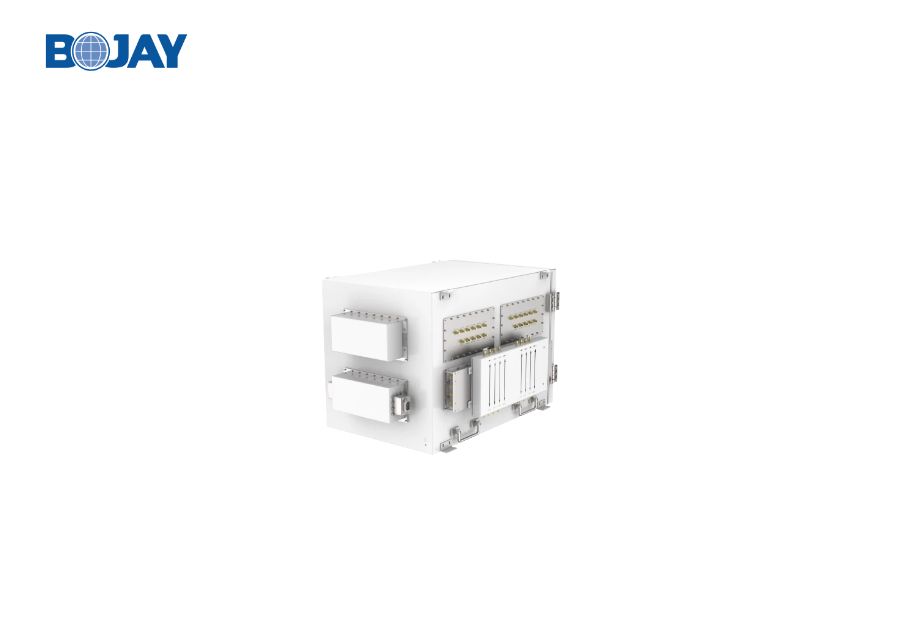

BJ-6709 Shielding box for WIFI 6e testing

● Pneumatic shielding box,supports manual operation

● EMI filter on all data lines;

● Reliable high RF shielding performance up to 12GHz;

● Used for WiFi, BT, WiFi 6/E, MIMO OTA etc test;

  • Product Information
  • Download
Application

The BJ-6709 shielding box is designed for WIFI 6e testing. The chamber features high RF isolation from 700MHz to 12GHz.


Mechanical Specification

Outer Dimension

525(W)*785 (L)*467(H)mm

Inner Dimension

311(W)*525 (L)*349(H)mm

Door Dimension

375(W)*413(H)mm

Net Weight

approx.55kg



Electrical Specification

Power Consumption

25W

Input Voltage

100~120/200~240VAC 50/60Hz

Positioner Control Interface

USB Type A /DB9 /RJ45



RF Performance

RF Isolation

700MHz ~12GHz> 80dB

Absorber Reflectivity

18GHz , <-20dB
