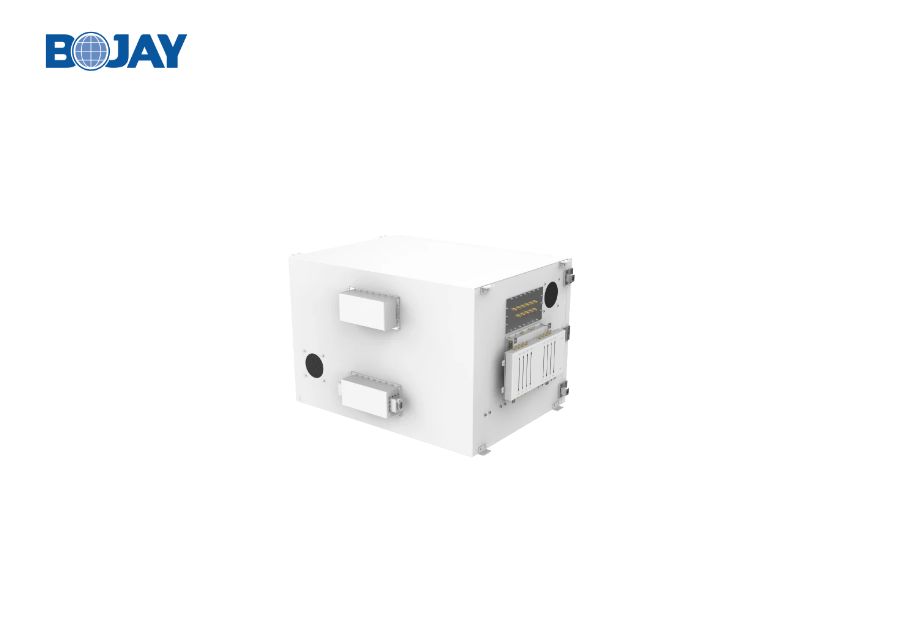

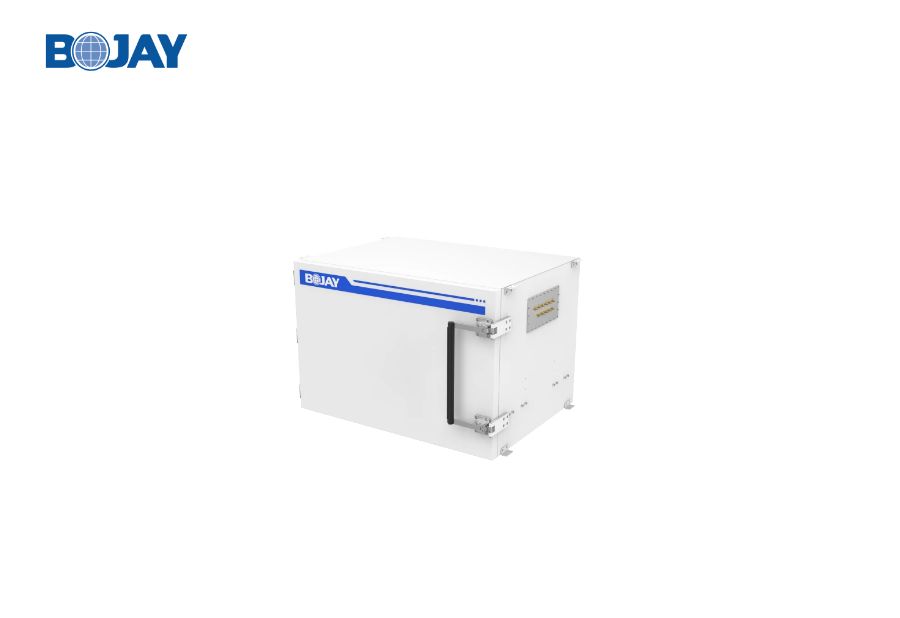

BJ-6710 RF Shielding box for OTA Test

● For WiFi, BT, WiFi 6/E, MIMO OTA etc test;

● Pneumatic operation;

● Reliable high RF shielding performance up to 12GHz;

  • Product Information
  • Download
Application

● The BJ-6710 shielding box is designed for WIFI 6e testing. The chamber features high RF isolation from 700MHz to 12GHz.

● Used for WiFi, BT, WiFi 6/E, MIMO OTA etc test;


Machanical Specification

Outer Dimension

985(W)*790 (L)*610(H)mm

Inner Dimension

780(W)*550 (L)*438 (H)mm

Door Dimension

840(W)*553(H)mm

Net Weight

approx.100kg



Electrical Specification

Power Consumption

350W

Input Voltage

100~120/200~240VAC 50/60Hz

Positioner Control Interface

USB Type A /DB9 /RJ45



Positioner Specification

Angular movement range

+/-180deg

Positioning accuracy

Max speed

50 °/s

Phi axis accuracy

+/-0.1deg

Positioner Loading

Max  5kg



RF Performance

RF Isolation

700MHz ~12GHz> 80dB

Absorber Reflectivity

18GHz , <-20dB
