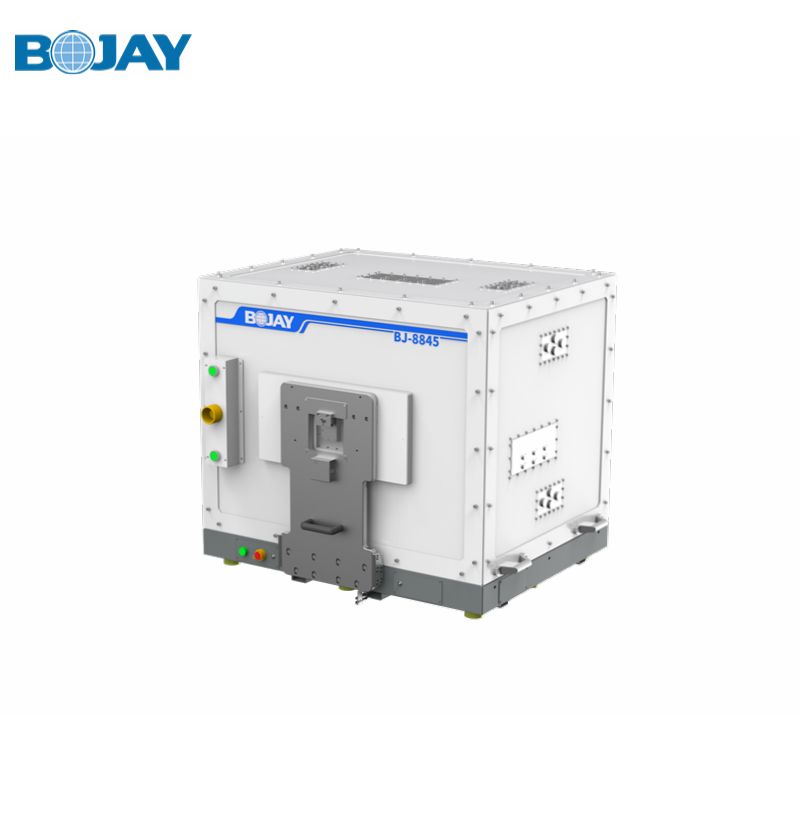

BJ-8845 mm Wave Anechoic Chamber ( FR1 and FR2)

● For 5G mmWave far field OTA test;

● Suitable for DUT size < 13.5";

● 700MHz to 70GHz RF Isolation > 70dB;

● Absorber reflective:<-40dB in FR2

● For mass production application.

  • Product Information
  • Download
Features

● BJ-8845 anechoic chamber is designed for both FR1 and FR2 OTA Test;

● Operation frequency from 700MHz to 70GHz;

● 700MHz to 70GHz RF Isolation > 70dB;

● Absorber reflective:<-40dB in FR2 ;

● Supports DUT size up to 13.5”;

● Large internal size and designed fixture mounting options allows an easily configurable setup for either FR1 and FR2 testing;

● Large front door opening along with flexible measurement antenna adjustment plus a modular panel design fit various products;

● Pneumatic drawer design can be fully automated;

● Input AC power: 100-240V AC 50Hz;


Mechanical Specification

Outer   Dimension

1035(W)*840(L)*845(H) mm

Inner Dimension

775(W)*557(L)*575(H) mm

Operation Door Dimension

375(W)*175(H) mm

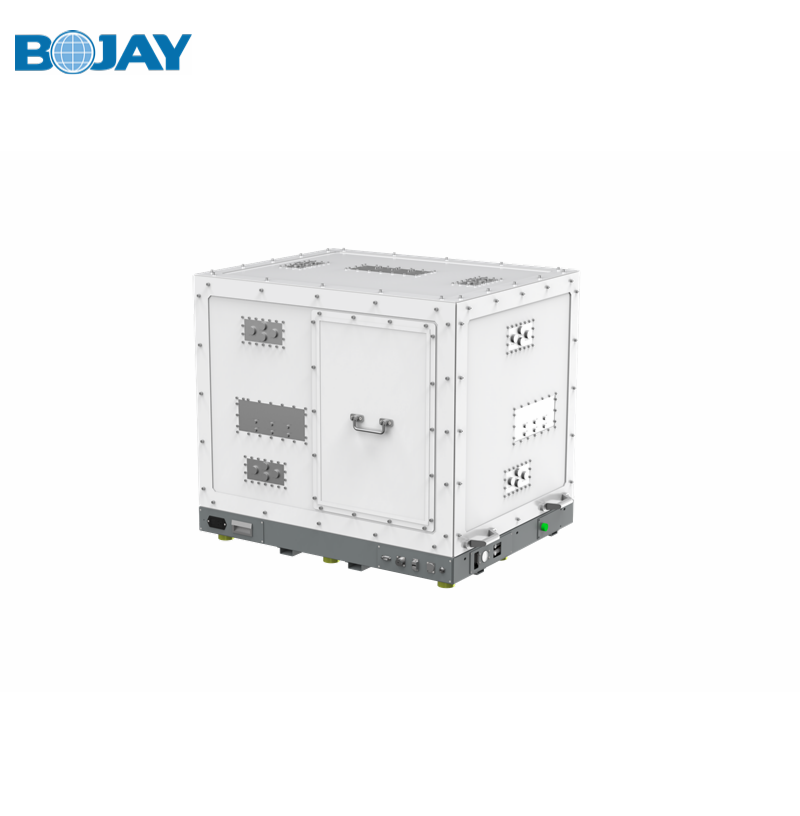

Side door size

350(W)*525(H)mm

Far field distance

100~150 mm (adjustable)

Net Weight

approx.175 kg

Gross Weight

approx.190 kg



Options

● Antenna, port and connector, based on customer requirement.
