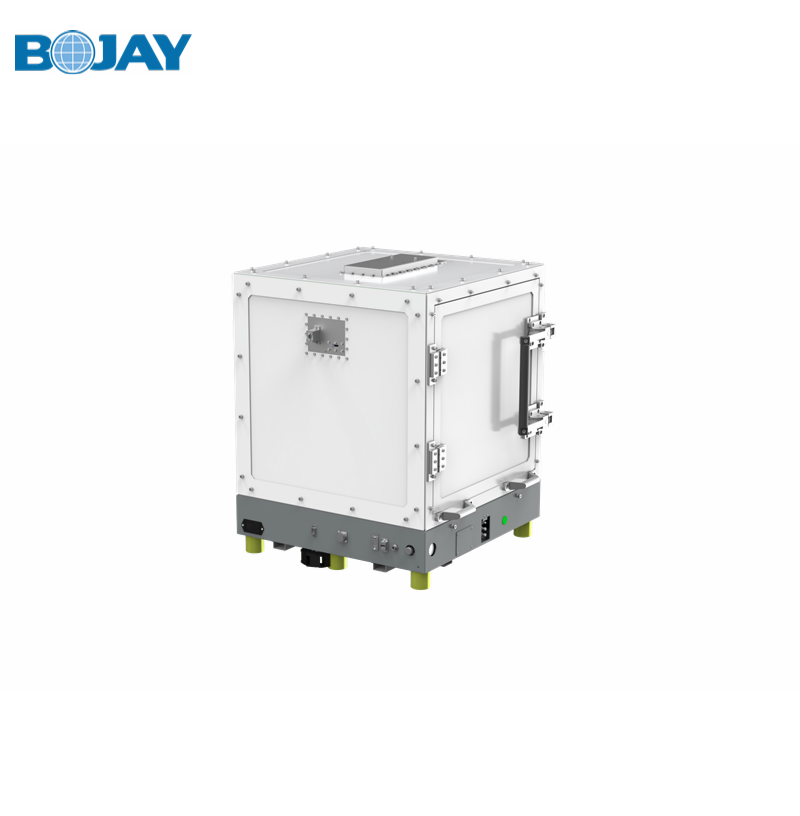

Compact Anechoic Chamber with 4-Axis Positioner | BJ-8853

● For 5G mm Wave far field OTA test;

● Suitable for DUT size < 7";

● 700MHz to 50GHz RF Isolation > 70dB;

● Absorber reflective:<-30dB in FR2 frequency bands;

● For Mass Production test application.

  • Product Information
  • Download
Features

● 5G mmwave OTA measurement in a compact footprint with max far field distance up to 250mm to fit various DUTs for cost effective mass production solution;

● Operation frequency from 700MHz to 50GHz;

● It contains a 3-axis linear movement plus 1-axis rotation positioner, in order to move any DUT antennas to the test area against the same ref antenna on top of the chamber;

● It can support any DUTs with <7”size;

● Input AC power: 100-240V AC 50Hz;


Mechanical Specification

Outer Dimension

692 (W)*800(L)*777.5(H)mm

Inner Dimension

490 (W)*490(L)*490(H)mm

Operation Door Dimension

390(W)*325(H)mm

Net Weight

approx. 127kg

Gross Weight

approx. 165kg



Positioner specification

X Range

±90 ± 0.2mm

Y Range

±90 ± 0.2mm

Z Range

60 ± 0.2mm

rotation

± 180deg

Theta axis accuracy

±0.5deg

DUT Size

Max: 180(L)*120(W)*50(H)mm

DUT Weight

Max :800g

Far Field Distance

150~250mm



Options

● Antenna, port and connector, based on customer requirement.
