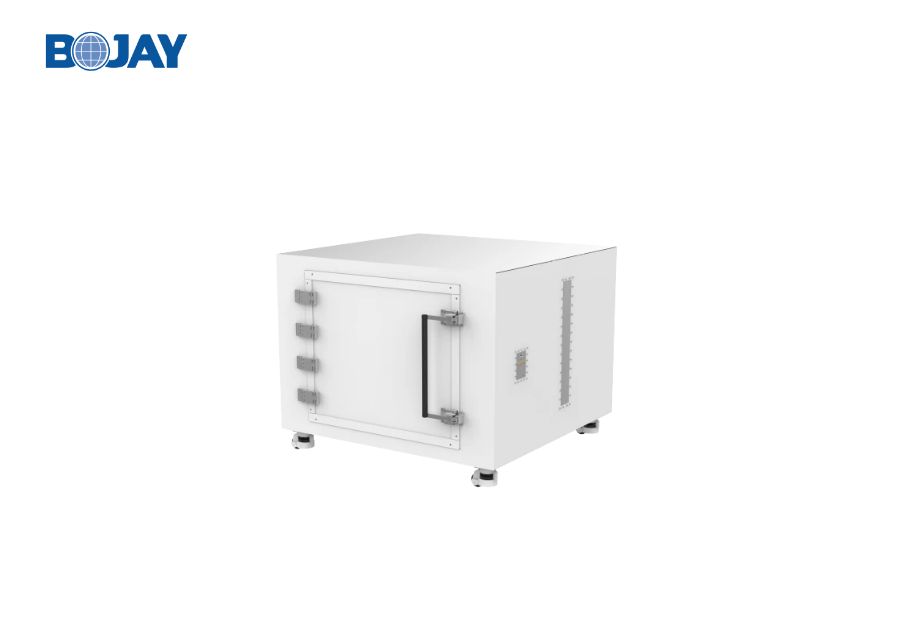

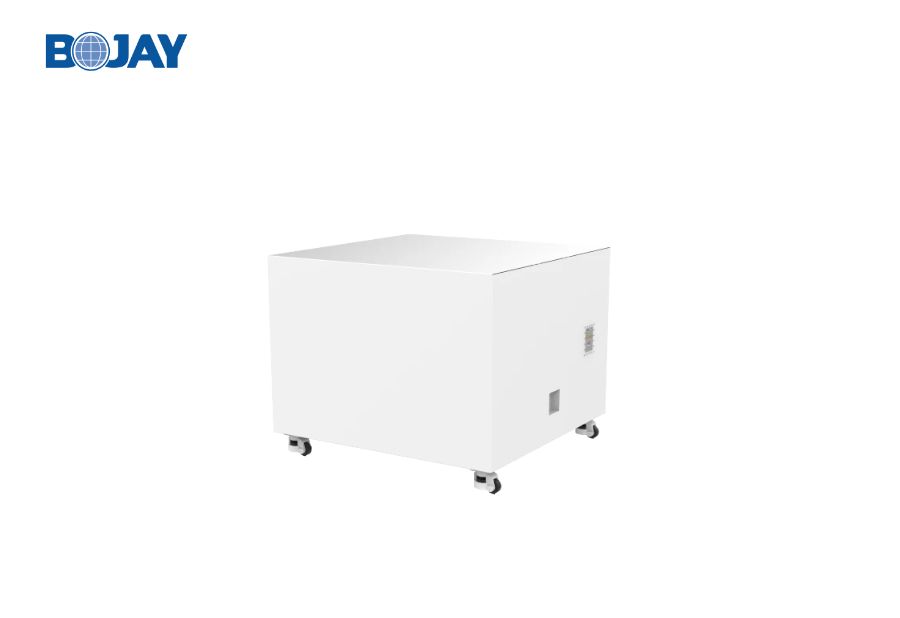

Shielding box for OTA Test | BJ-6708

● RF Isolation : 0.7~12GHz>40dB

● For comsumer electrical divice OTA Test

● Supported DUT Weight up to 1.5kg

● For The antenna mounting base can be moved in the range of 0~500mm

  • Product Information
  • Download
Application

● The BJ-6708 shielding box is designed for OTA testing. The chamber features high RF isolation from 700MHz to 12GHz.

Mechanical Specification

Inner Dimension

936(W)*976(L)*624(H)mm

Outer Dimension(without base)

1206(W)*1200 (L)*960(H)mm

Operation Door Dimension

775(W)*640(H)mm

Product Net Weight

approx.150kg



Electrical Specification

Power Consumption

100W

Input Voltage

100~120/200~240VAC 50/60Hz

Positioner Control Interface

USB Type A Female/DB9 Female for RS232



Positioner Specification

Manual rotate positioner

+/-60deg

Manual adjustment accuracy

+/-3deg

Automated positioner

+/-60deg

Rotation accuracy

+/-0.1deg

Maximum rotation speed

60deg/s

Supported DUT Size

Maximum:245(L)*360(W)mm

Supported DUT Weight

Max  1.5kg
