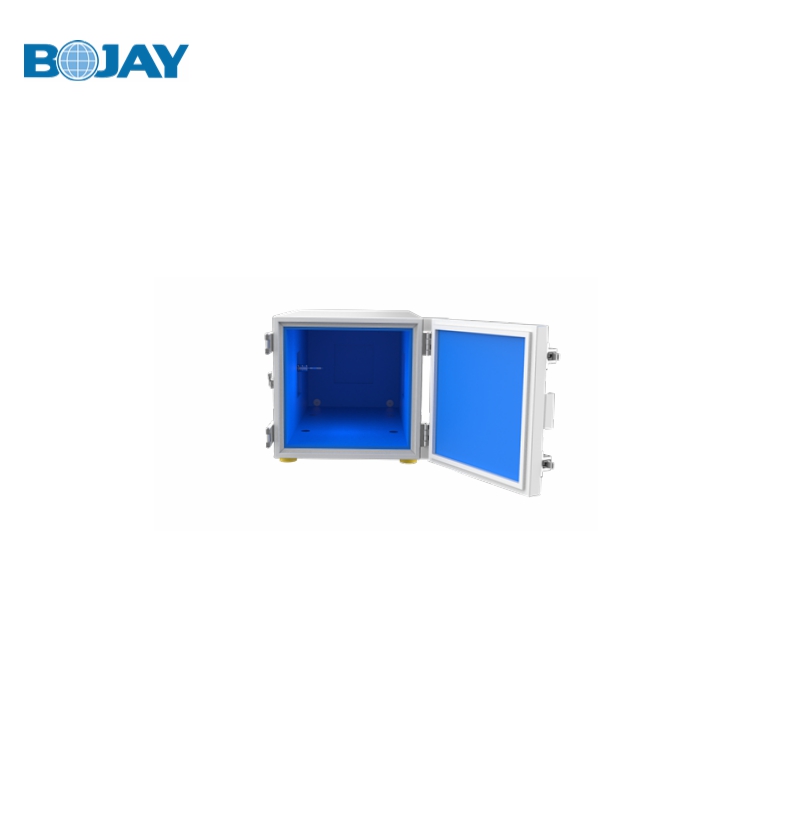

BJ-8024 mmWave Anechoic Chamber For MP/Lab

● For tablet 5G mmWave far field OTA test;

● Suitable for DUT size <10";

● For lab application.

  • Product Information
  • Download
Features

● Operation frequency from 700MHz to 50GHz;

● 700MHz to 50GHz RF Isolation > 70dB;

● Absorber reflective:<-30dB in FR2 frequency bands;

● Typical test far field distance > 250 mm;

● It can support most DUTs with <10” size;

● It is a manual solution compatible for both mass production and lab;

● Input AC power: 100-240V AC 50Hz;


Mechanical Specification

Outer Dimension

545(W)*860(L)*421(H)mm

Inner Dimension

335(W)*707(L)*320(H)mm

Operation Door   Dimension

405(W)*390(H)mm

Net Weight

approx. 75kg

Max DUT Size

270(W)*270(L)*50(H)mm

DUT Weight

<2kg



Options

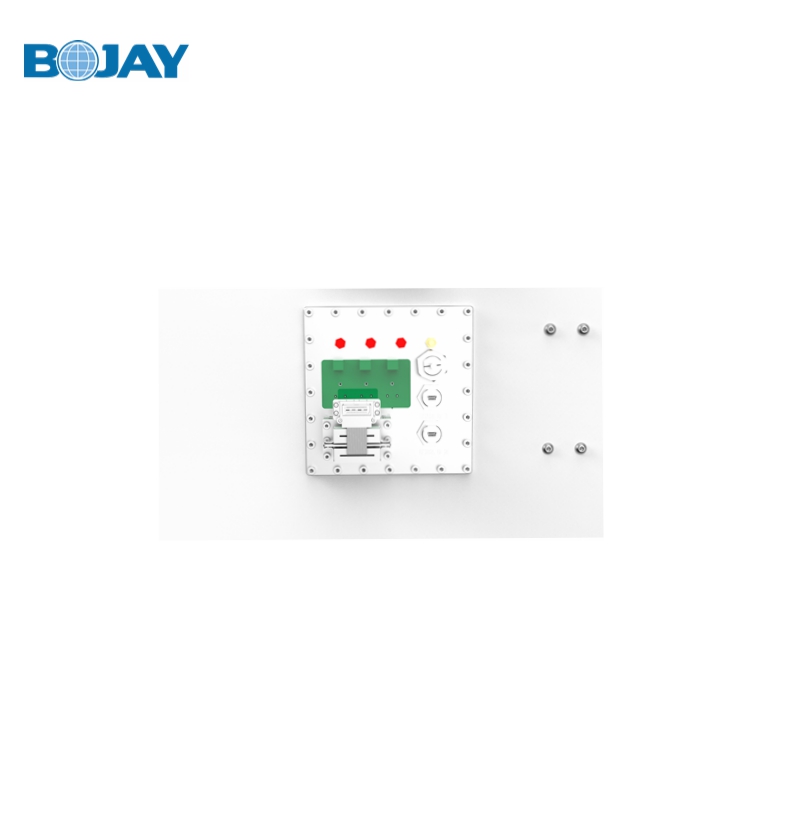

● The different bulkhead RF adapters could be configured for various test plans.
