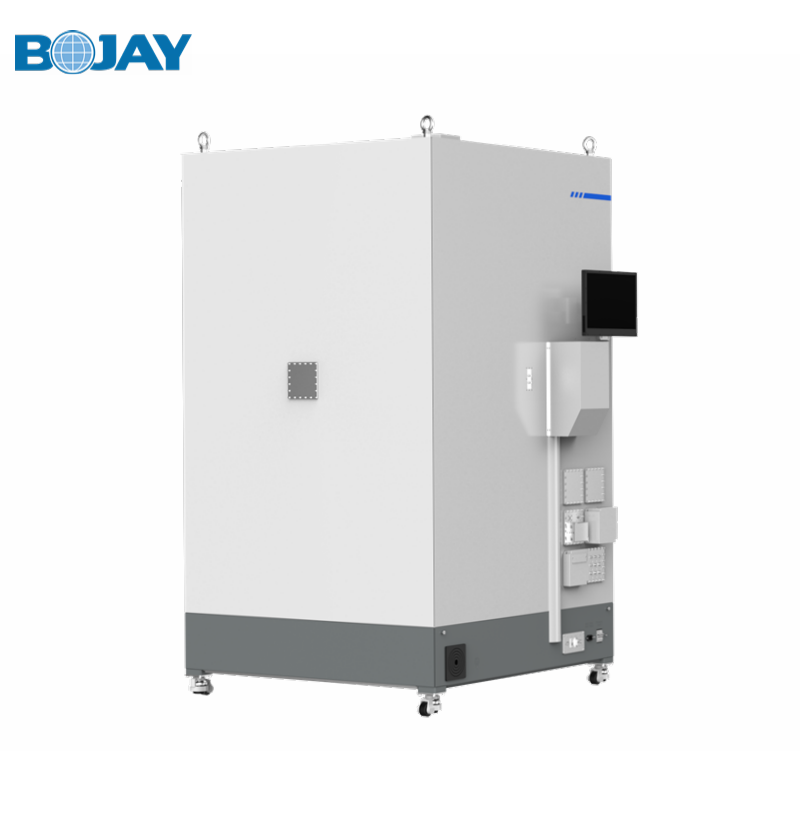

BJ-8827 Anechoic Chamber For Laptop Test

● For consumer electronic devices 5G mmWave far field OTA test;

● Suitable for DUT size < 15";

● For lab test application.



  • Product Information
  • Download
Features

● Operation frequency from 800MHz to 60GHz;

● 800MHz to 60GHz RF Isolation > 70dB;

● RF absorber reflectivity in chamber < -30dB;

● Ultra fast DUT rotate speed within θ and φ step with accuracy of 0.5°to fulfill 3D spherical OTA test;

● Typical test far field distance from 540mm-700mm;

● Several available I/O ports on interface board for flexible system application;

● Multi DUTs adaptive without changing DUT test fixtures;

● Chamber interal ambient temperature adjustable with optional thermal box;

● Input AC power: 100-240V AC 50Hz.



Mechanical Specification
Outer Dimension 1325(W)*1254(L)*2078(H)mm
Inner Dimension 1000(W)*1050 (L)*1555(H)mm
Operation Door Dimension 750(W)*750(H)m
Net Weight approx.373kg
Max DUT Size 380(L)*220(W)*100(H)mm
DUT Weight  <15kg



Options

● Thermal box is optional to configure the ambient temperature in test chamber;

● The different bulkhead RF adapters could be configured for various test plans.
