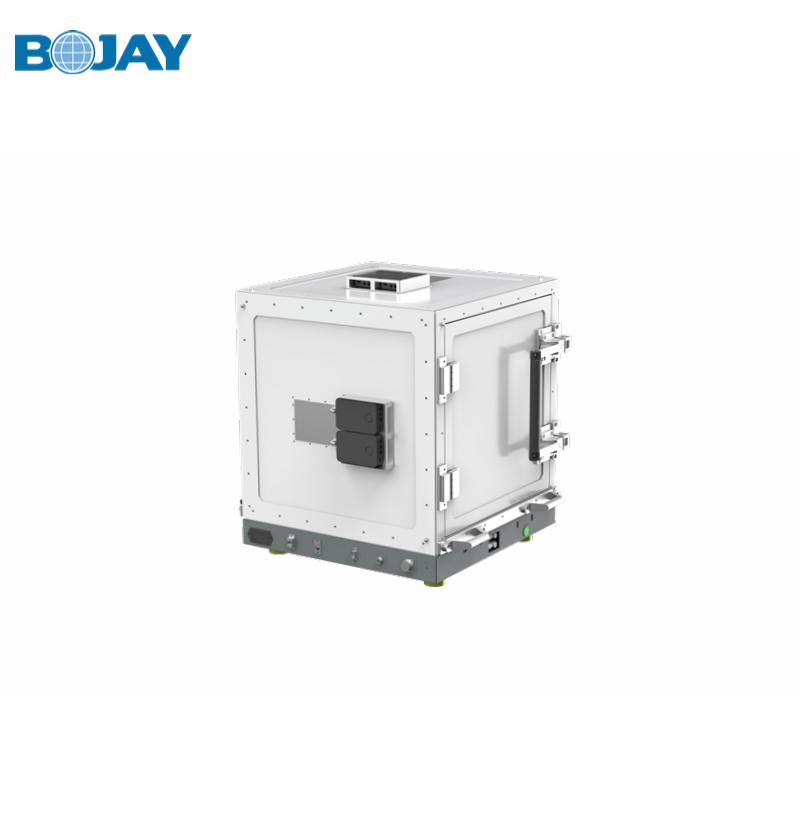

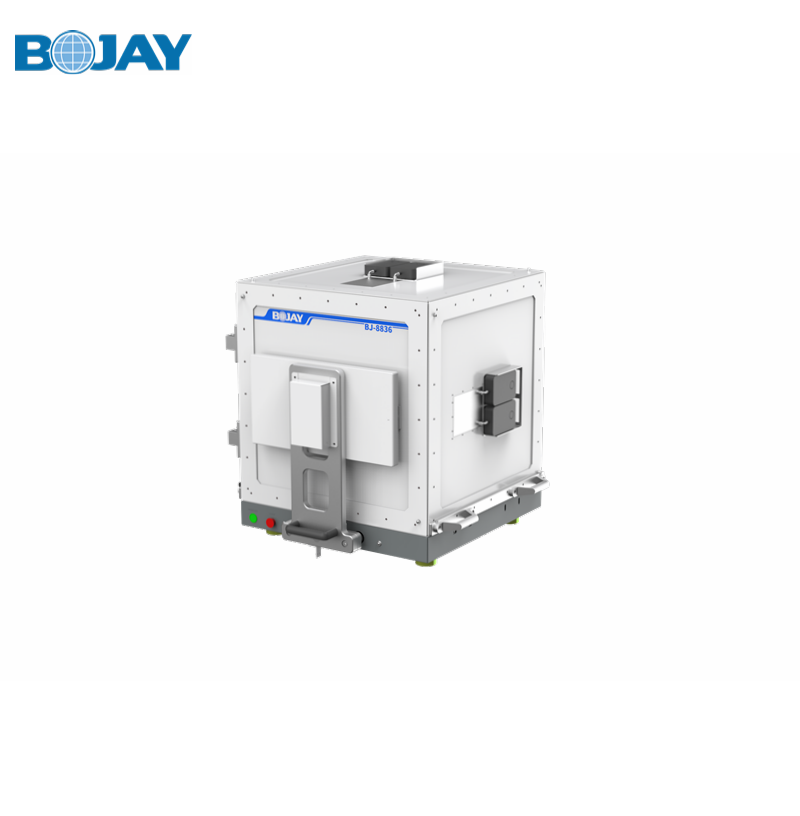

BJ-8836 Anechoic Chamber For Tablet Test

● For consumer electronic devices 5G mmWave far field OTA test;

● Suitable for DUT size < 9";

● For mass production application.

  • Product Information
  • Download
Features

● Operation frequency from 800MHz to 50GHz;

● 800MHz to 50GHz RF Isolation > 70dB;

● RF absorber reflectivity in chamber < -30dB;

● Typical test far field distance from 80mm-120mm,and 160mm max for single test antenna setup;

● Chamber designed with shape of square, each wall could be exchanged each other freely for different test sutup;

● A special 450x450mm manual door for maintenance purpose;

● Several available I/O ports on interface board for flexible system application;

● Pneumatic operation door for both automation & manual production line setup;

● Input AC power: 100-240V AC 50Hz.



Mechanical Specification
Outer Dimension 658(W)*627(L)*643(H)mm
Inner Dimension 441(W)*441(L)*441(H)mm
Operation Door Dimension 300(W)*150(H)mm
Net Weight approx.83kg
Max DUT Size 160(W)*240(L)*50(H)mm



Options

● The different bulkhead RF adapters could be configured for various test plans.
