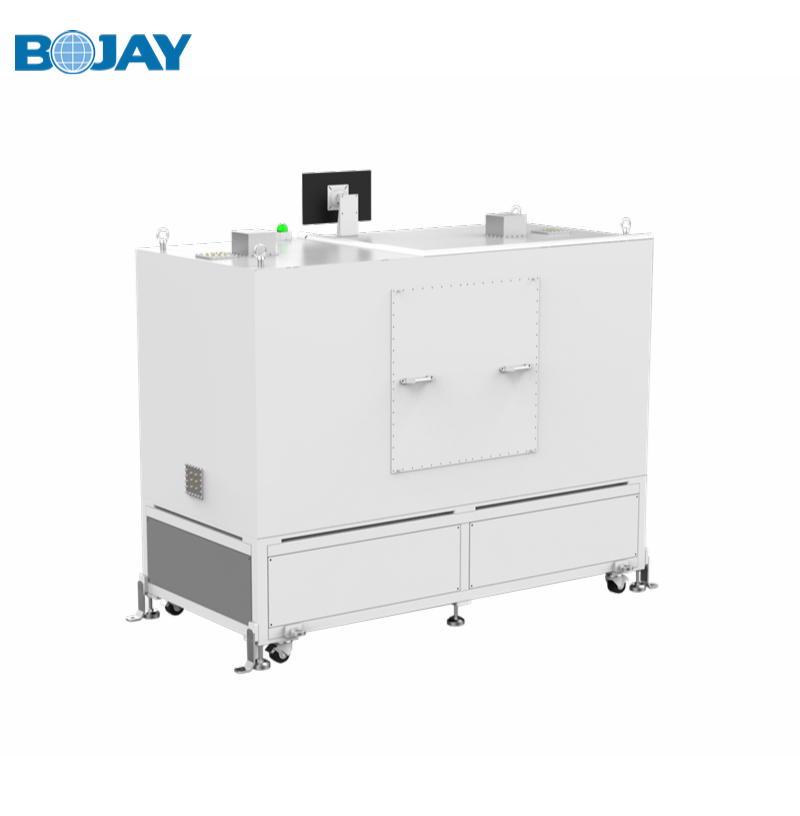

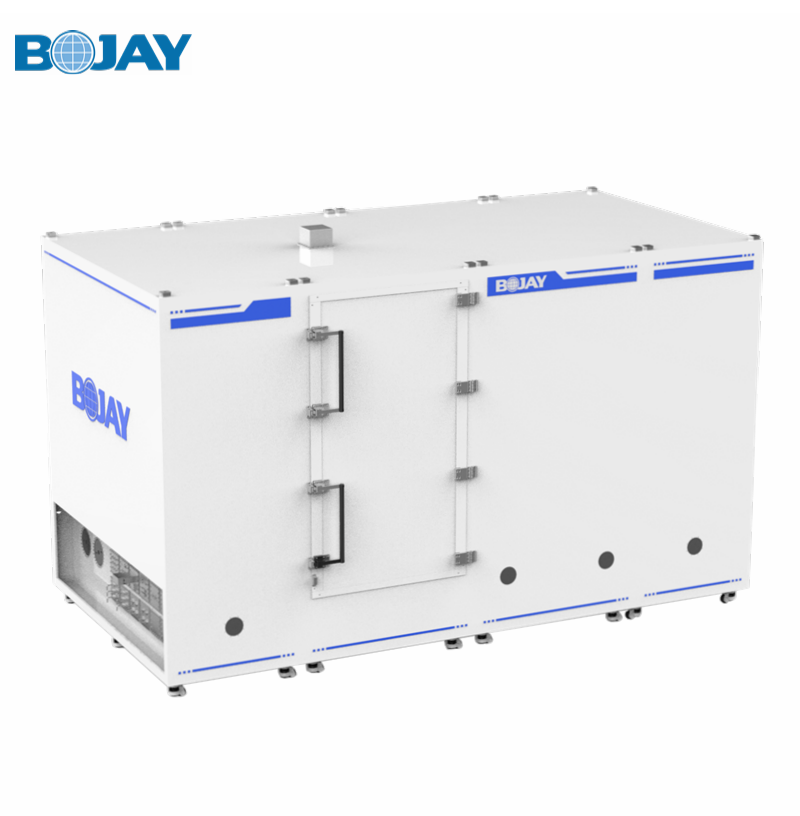

BJ-8854 mm Wave anechoic chamber For Combined mm wave OTA Test

● For 5G mm Wave far field OTA test;

● For lab test application.



  • Product Information
  • Download
Features

● Operation frequency from 700MHz to 72GHz;

● 700MHz to 72GHz RF Isolation > 50dB;

● Absorber reflective:<-30dB in FR2;

● CPE Elevation ± 90°、Azimuth ± 180° of rotation, and Phantom ± 360° of rotation;

● mm wave rated RF filters on all Chamber I/O ports;

● USB/RS232/RJ45 Positioner Control;

● Customizable measurement automation scripts, Flexible software development;

● Local control GUI;

● Input AC power: 100-240V AC 50Hz.



Mechanical Specification
Outer Dimension 1080(W)*2406(L)*2007(H)mm
Inner Dimension 736(W)*1902(L)*640(H)mm
Operation Door Dimension 605(W)*690(H)mm
Net Weight approx.917.5kg
Gross Weight approx.1150kg



Motion module specification
CPE elevation rotation ±90deg
CPE azimuth rotation ±180deg
Phantom azimuth rotation  ±360deg
Phantom linear motion Max: 1200mm
Rotation Accuracy ±0.1deg
Phantom linear motion accuracy ±0.02mm
Rotation Speed 45deg/s typ. max :60deg/s
Phantom linear motion speed max :4m/s
DUT Size Max:280(L)*175(W)mm
DUT Weight Max :9Kg
Far Field Distance Max: 1200mm



Options

● Antenna, port and connector, based on customer requirement.
