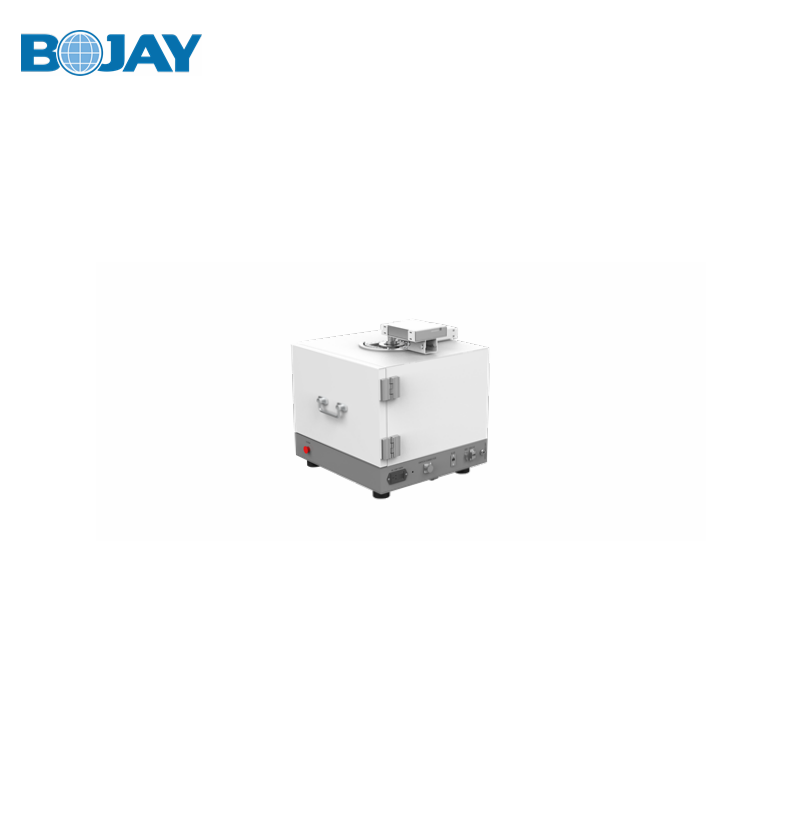

Features
● Operation frequency from 700MHz to 70GHz;
● Supports DUT size up to 6.5”;
● Typical test far field distance 100mm;
● Optimized for mass production testing requirements;
● Pneumatic drawer design can be fully automated;
● Input AC power: 100-240V AC 50Hz.
Mechanical Specification
Outer Dimension | 464.0(W)*586.0(L)*378.0(H)mm |
Inner Dimension | 322.0(W)*353.0(L)*189.0(H)mm |
Operation Door Dimension | 200(W)*160(H)mm |
Net Weight | approx. 34kg |
Max DUT Size | 100(W)*170(L)*50(H)mm |
DUT Weight | <0.8kg |
Options
● The different bulkhead RF adapters could be configured for various test plans.
