Features
● Transfer RF mmWave signal;
● Connect test instruments and shielding box;
● Connect RF adapter and test horn antenna in chamber;
● Connector type on both ends could be customized;
● RF row cable length and OD could be customized for flexible applications .
Specification
View | Part Number | Connector Type | RF Cable OD | Operation Frequency | Insertion Loss(1m) | VSWR |

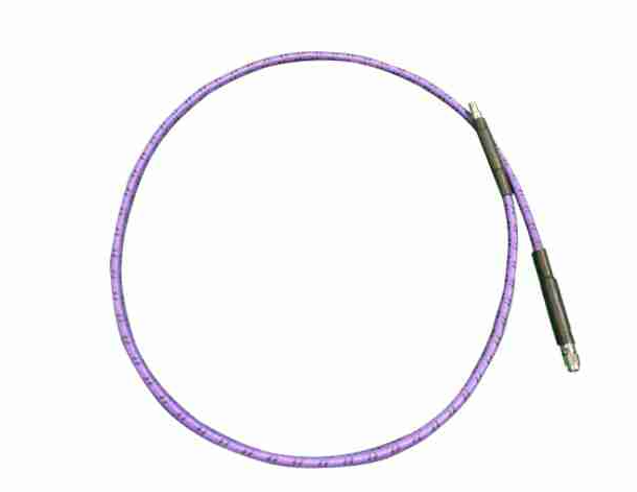

| 333.1766 | 1.85mm | 6mm | Up to 67GHz | ≤6.02dB | <1.35 |
333.1767 | 2.4mm | 6mm | Up to 50GHz | ≤3.29dB | <1.25 | |
333.1769 | 2.92mm | 6mm | Up to 40GHz | ≤2.92dB | <1.25 | |

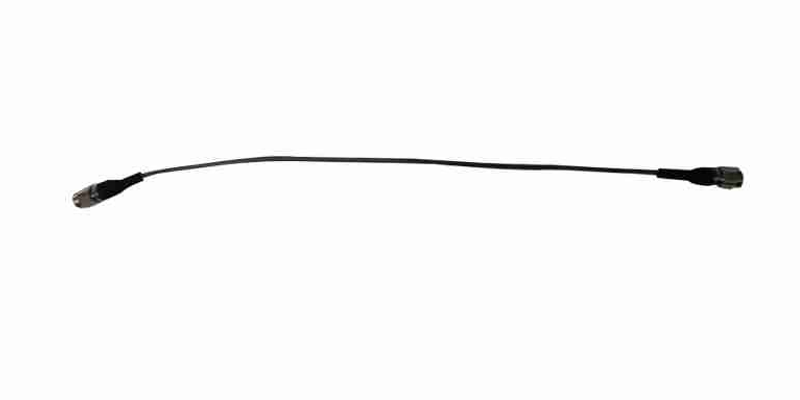

| 333.1764 | 2.4mm | 2.2mm | Up to 50GHz | ≤5.03dB | <1.3 |
333.1765 | 2.92mm | 2.2mm | Up to 40GHz | ≤4.4dB | <1.3 |
