Features
● Operation frequency from 700MHz to 12GHz;
● 700MHz to 12GHz RF Isolation > 60dB；

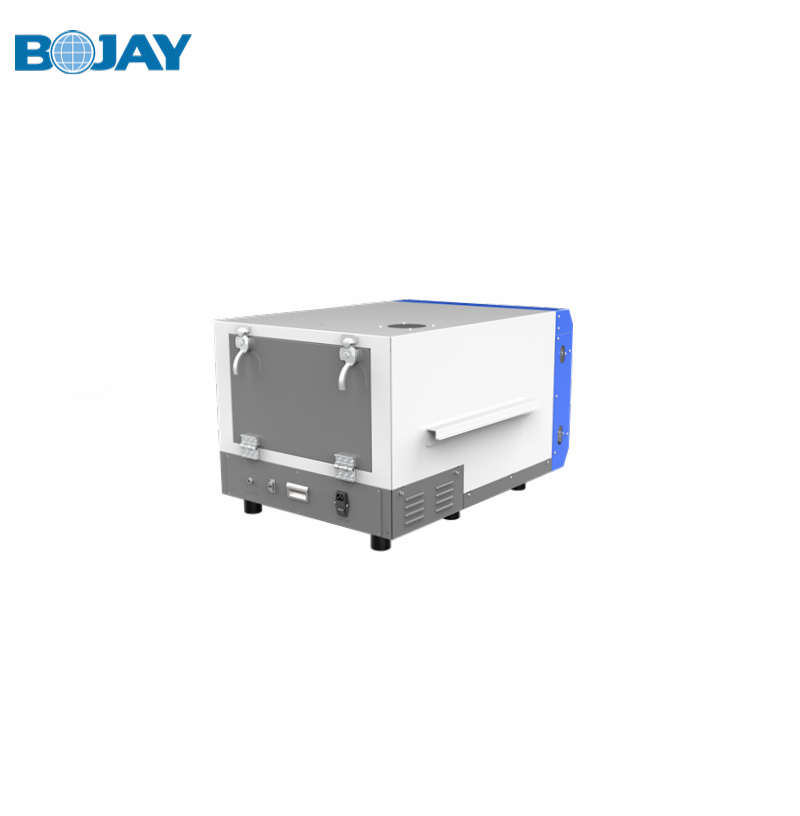

● This chamber is designed for PCBA RF conductive test, especially for Pad and notebook;
● It is a mass production solution for GPS, Cellular（up to sub6), BT, WIFI, WIFI6e and UWB, etc;
● Paring with the modulation fixture, it can support fast switching, automation load/unload, and multi DUTs test;
● The supported DUT size can reach 15" ;
● Input AC power: 100-240V AC 50Hz.
Mechanical Specification
Outer Dimension | 710(L) * 915(W) * 584(H) mm |
Inner Dimension | 580(W)* 694(D) * 456(H)mm |
Opening Dimension | 710(L) * 1295(W) * 584(H) mm |
Product Net Weight | approx.90kg |
