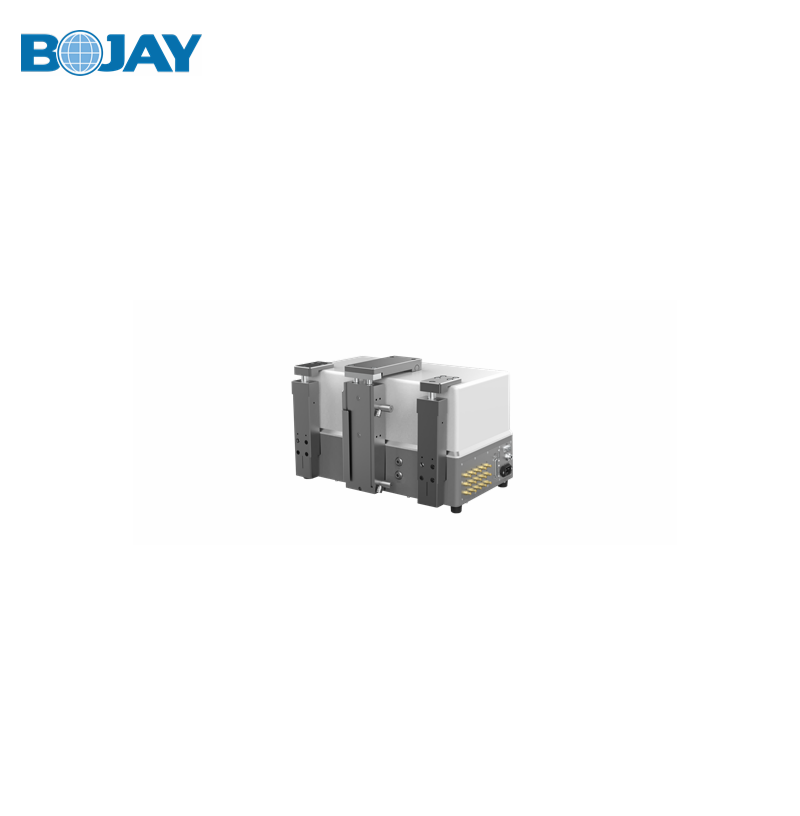

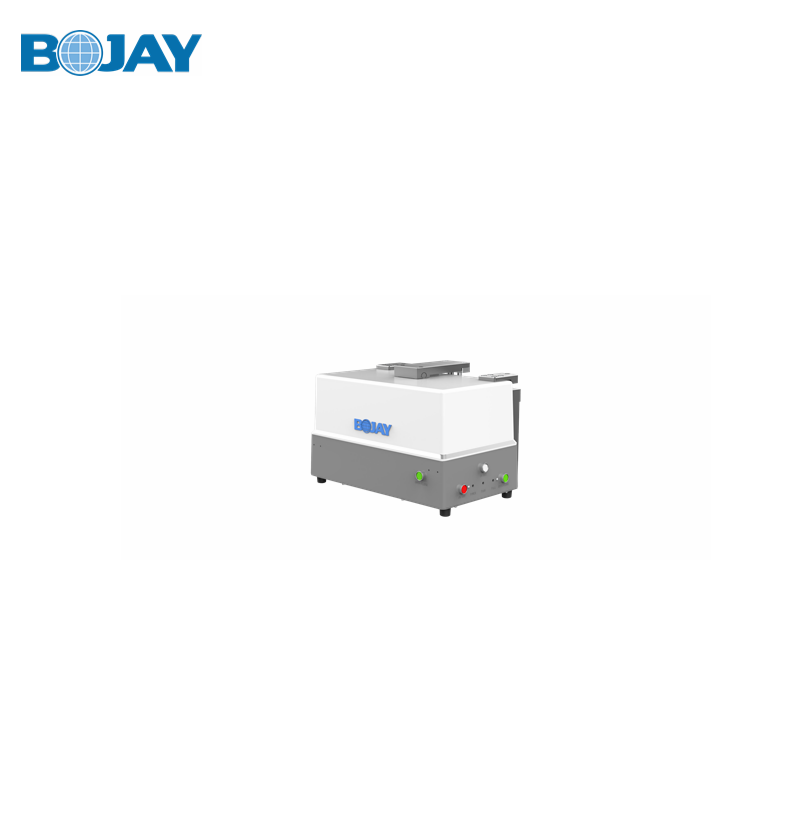

BJ-9800 PCBA Test System

● For consumer electronic devices 4G conductive test environment;

● For mass production application.

  • Product Information
  • Download

● Operation frequency from 700MHz to 12GHz;

● 700MHz to 12GHz RF Isolation > 70dB;

● This chamber is designed for PCBA RF conductive test, especially for Phone,Earbud and Watch;

● It is a mass production solution for GPS, Cellular(up to sub6), BT, WIFI, WIFI6e and UWB, etc;

● Paring with the modulation fixture, it can support fast switching, automation load/unload, and multi DUTs test;

● The supported DUT size can reach 4";

● Input AC power: 100-240V AC 50Hz.

Mechanical Specification

Outer Dimension

448(W)   * 292(D) * 306(H) mm

Inner Dimension

404(W)*   214(D) * 130(H)mm

Opening Dimension

448(W)   * 292(D) * 456(H) mm

Product Net Weight
