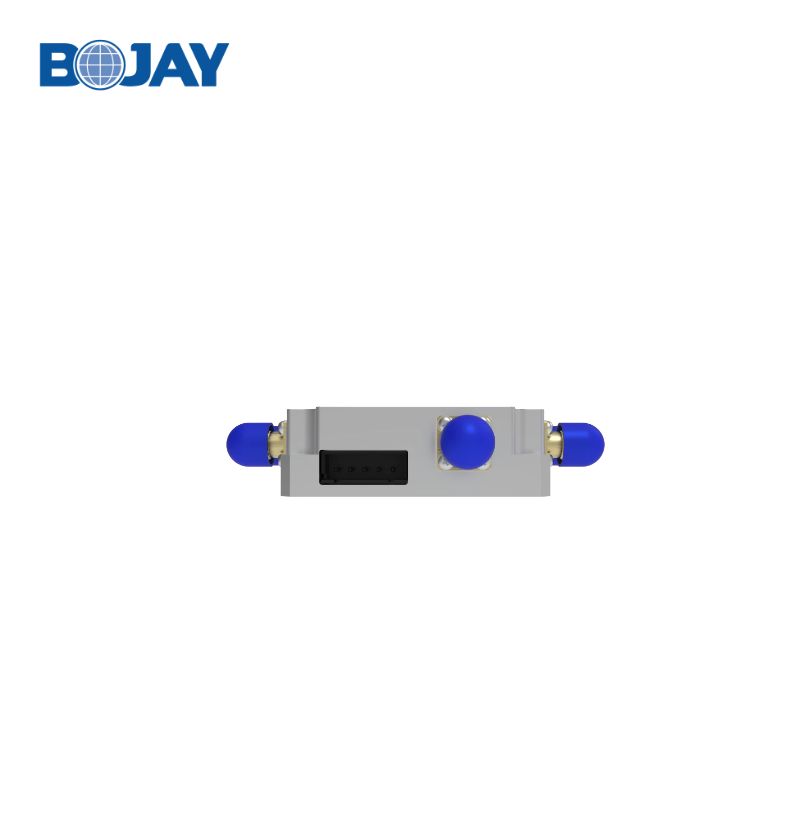

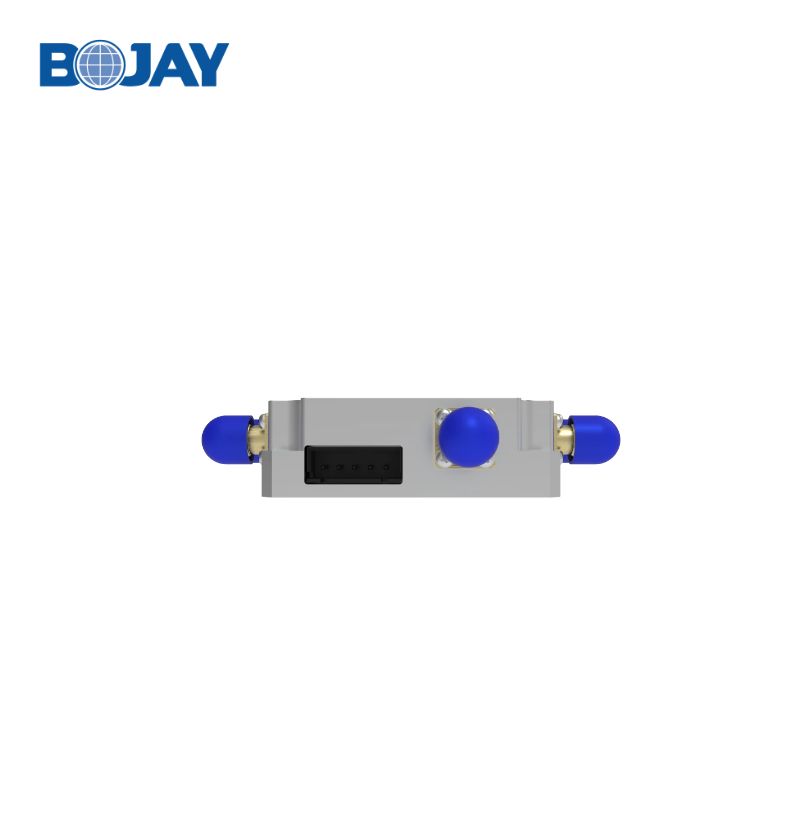

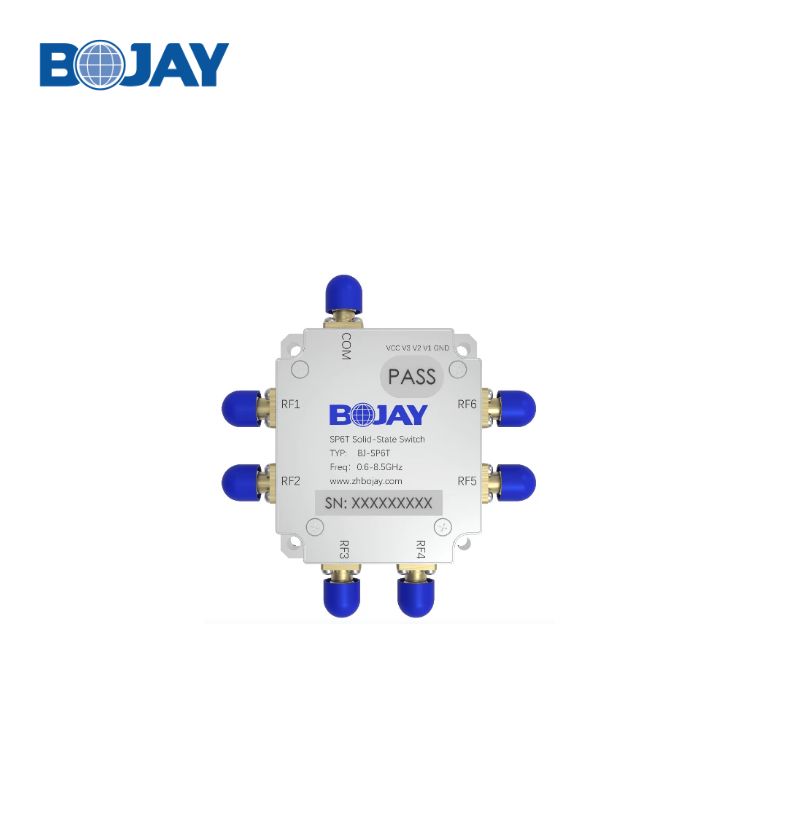

BJRS-S1P6T-AA Solid state switch

● Support sub 6G / WiFi 7 mobile communication test ;

● Expand the port of the comprehensive tester to improve the utilization rate of the instrument;

● The RF connector adopts SMA to improve the reliability of the module ;

● Electronic RF switches have a service life of 1 billion times, 500 times that of traditional mechanical switches

  • Product Information
  • Download
Main Features

● Support sub 6G / WiFi 7 mobile communication test ;

● The RF connector adopts SMA to improve the reliability of the module ;

● Expand the port of the comprehensive tester to improve the utilization rate of the instrument.



Specification

Operating frequency range

0.6~8.5GHz

switch type

Absorption, solid

Channel insertion loss

≤4dB@0.6~8.5GHz

VSWR1 is the common end and 2 is the antenna end

VSWR <1.2@8G

VSWR <1.5@6 GHz ~8.5GHz

Amplitude consistency of each channel

≤0.5dB

Maximum input power

≤2W (33dBm)

Switching Time

≤2ms

communication interface

I/O

 power supply

3V3

RF connector

SMA

Module isolation

>70dB

working temperature

-10~60

Dimension

67.4mm*67.4mm*16.7mm
