BJ-8600 Bojay 5G mmWave test Compact Antenna Test Range for lab

● For 5G black box measurement for various size DUTs;

● For lab test application.

  • Product Information
  • Download
Features

● Operation frequency from 700MHz to 60GHz;

● 700MHz to 60GHz RF Isolation > 70dB;

● High precision parabolic reflector and high accuracy 2-axis positioner provide large quiet zone size of 300 mm for a black box measurement for various size DUTs;

● Thermal test option available;

● Standard API for software development/test automation;

● Fast measurement capability via TTL hardware signal trigger;

● Compatible with 3GPP test protocols;

● Input AC power: 100-240V AC 50Hz.


Mechanical Specification

Outer Dimension

1125(W)*2200 (L)*1200(H)mm

Inner Dimension

880(W)*1680(L)*925(H)mm

Operation Door Dimension

756(W)*798(H)mm

Net Weight

approx.580kg

Gross Weight

approx.700kg



RF Specification

RF Isolation

0.7 ~60GHz >70dB

Absorber Reflectivity

< -40 dB from 24 GHz to 50 GHz

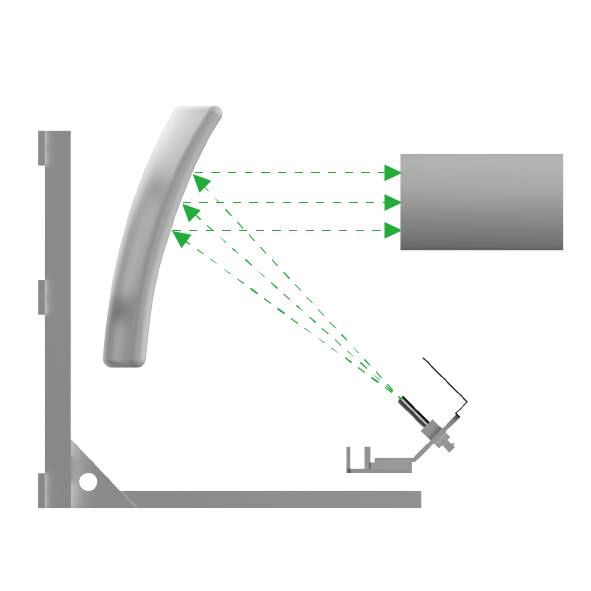

CATR Specification

Reflector

Offset parabola, blended rolled edges

Reflector Size

600 x 600 mm

Frequency Range

0.7 ~ 50GHz




Quite Zone Quality

Dimension φ300 x 300 mm

Amplitude taper<1dB

Amplitude ripple<0.5dB

Feed Antenna

Dual polarized

Feed Connector

2x 2.4 mm

Material

Al alloy



2-Axis Positioner Specification

Theta Axis Rotation

±180deg

Phi Axis Rotation

±180deg

Theta Axis Accuracy

±0.1deg

Phi Axis Accuracy

±0.1deg

DUT Size

Max :390(L)*370(W)mm

DUT Weight

Max :7kg



Options

● Antenna, port and connector, based on customer requirement.
